Movie Experience Reinvented
NSK MEDIA SYSTEMS offer state-of-the-art movie theater systems that encompass Laser Projection, Dolby Digital Audio, Theatre Management Solutions, seating, and comfort products
Movie Theatre Experience beyond limits
As a premier audio-visual systems integrator specializing in the design, supply, and commissioning of professional-grade facilities for the cinema and production industries.
With a focus on bridging the gap between cutting-edge technology and seamless user experience, NSK Media provides comprehensive solutions tailored to the specific technical demands of modern media environments.
Barco Series 4 Laser Projectors
Barco SP2K‑7S Laser Projector
Description
SP2K-7S is part of the Series 4 portfolio, designed in close collaboration with industry partners. Market trends in content creation, exhibition and technology were taken into account. The result? A market leading laser projection family for all cinema screens. The SP2K models come in many different configurations, offering you the freedom of choice. A wide range of brightness options, compatibility with various media servers and lenses, as well as a touch display and live streaming option. Play with the available options to match your specific needs
General specifications and features
- Native brightness : 6,000 lumens (typical)
Native contrast ratio : 2200:1 (typical) up to 3000:1 with HC lens - Digital MicroMirror Device™ : 3x 0.69″ u2K
Resolution : 2K: 2048 x 1080
Color gamut : DCI P3 compliant
Light source : Laser
Prime lenses : 0.83-1.2, 1.2-1.7 , 1.34-1.9, 1.5-2.15 , 1.7-2.55 , 2.0-3.9 High-brightness and high-contrast lenses : - Long-term brightness stability : +50,000 hrs @ average usage conditions
Housing : Integrated cooling design and patented sealed optical assembly - Brilliant image : The SP2K models of the Series 4 family bring native 2K resolution, full P3 color space, higher contrast and enhanced uniformity into the movie theater. The Barco Active Image ManagementTM includes patented technology to guarantee sharp, consistent image quality over time.
- Ready for tomorrow, today : With numerous benefits to enhance moviegoer experience and create peace of mind for exhibitors, this 4th generation of Barco laser projection is the way to move forward. Moreover, all SP2K models are compatible with the latest immersive audio standard.
- Barco EcoPureTM : This silent running projector (40dB(A)) is fully ready for boothless operation. In addition, the SP2K-7S smartly manages its power consumption reaching projector efficiency levels of 6.7 lumens per Watt. In eco-mode it consumes even less than 3 Watt. What’s more, remote wake up on LAN is possible for scheduled maintenance or ingest.
- Fit and forget : The modular design of the Series 4 projectors allows for cost-effective maintenance. There are only three Barco Laser PlateTM spare parts to service all light source configurations. Anyone can replace the filters thanks to the toolless cover and filter handling. The SP2K-7S seamlessly integrates into your current setup
Barco SP2K‑9S Laser Projector
Description
SP2K-9S is part of the Series 4 portfolio, designed in close collaboration with industry partners. Market trends in content creation, exhibition and technology were taken into account. The result? A next-generation laser projection family for all cinema screens. The SP2K models come in many different configurations, offering you the freedom of choice. A wide range of brightness options, compatibility with various media servers and lenses, as well as a touch display and live streaming option. Play with the available options to match your specific needs.
The SP2K models of the Series 4 family bring native 2K resolution, full P3 color space, higher contrast and enhanced uniformity into the movie theater. The Barco Active Image ManagementTM includes patented technology to guarantee sharp, consistent image quality over time.
With numerous benefits to enhance moviegoer experience and create peace of mind for exhibitors, this 4th generation of Barco laser projection is the way to move forward.
General specifications and features
- Native brightness : 8,000 lumens (typical).
- Native contrast ratio : 2200:1 (typical) up to 3000:1 with HC lens
- Digital MicroMirror Device™ : 3x 0.69″ u2K
- Resolution : 2K: 2048 x 1080
- Color gamut : DCI P3 compliant
- Light source : Laser
- Prime lenses : 0.83-1.2, 1.2-1.7 , 1.34-1.9, 1.5-2.15 , 1.7-2.55 , 2.0-3.9 High-brightness and high-contrast lenses
- Long-term brightness stability : +50,000 hrs @ average usage conditions
- Housing : integrated cooling design and patented sealed optical assembly
- Dimensions (WxLxH) : Projector incl feet: 650 x 880 x 420 mm/ 25,59 x 34,65 x 16,54 inches
- Power requirements : single phase 200-240V 6A single phase 110-130V 10A
- Heat load : 3794 BTU/h @ max power @ 40°C
- Media server : Fully Integrated Barco mFusion ICMP-XS with SSD Storage Up To 16TB eff. Other media server brands** supported.
- Power consumption : 1.0kW (3W in Eco Mode)
- 3D systems: Active glasses systems and polarization systems on silver screens are supported. Color separation systems are not supported.
Laser classification : Laser Class 1 – Risk Group 3 - User interface : Integrated Touch Display and/or Web-based Communicator Web Analyzer for service
Barco SP4K‑12C Laser Projector
Description
SP4K-12C is part of the Series 4 portfolio, designed in close collaboration with industry partners. Market trends in content creation, exhibition, and technology were taken into account. The result? A market-leading 4K RGB projector family, designed for cinema. The Barco ColorgenicTM technology opens up the full P3 color space and more than 98.5% of Rec. 2020. SP4K-12C is fully enabled for future innovations like 4K HFR and IAB audio. Deliver stunning results not only on day 1, but consistently throughout the lifetime of the product.
The SP4K models come in many different configurations, offering you the freedom of choice. A range of lumens, compatibility with both Barco lenses and selected 3rd party lenses. Play with the available options to match your specific needs.
General specifications and features
- Native brightness : 12,500 lumens (typical)
- Native contrast ratio : 2700:1 (typical) up to 3500:1 with HC lens
- Digital MicroMirror Device : 3x 0.98” DC4K
- Resolution : native 4K: 4096 x 2160
- Color gamut : DCI P3 compliant (98.5% of Rec.2020; when measured in xy-color coordinates)
- Light source : Laser
- Prime lenses : With C-lensholder: 0.8 – 1.16; 1.09 – 1.40; 1.2 – 1.8; 1.4 – 2.05; 1.6 – 2.5 ; 1.95 – 3.2; 2.4 – 3.9 With B-lensholder: 1.01; 1.27; 1.6 – 2.4; 1.9 – 2.6; 2.0 – 2.95; 2.3 – 3.65; 2.8 – 4.7; 3.55 – 6.95 High-brightness and High-contrast B-lenses compatible
- Long-term brightness stability : +50,000 hrs @ average usage conditions
- Housing : integrated cooling design and patented sealed optical assembly
- Dimensions (WxLxH) : Projector incl feet: 710 x 1070 x 547 mm/ 27,95 x 42,13 x 21,54 inches
(710 x 1132x 547 mm/ 27,95 x 44.55x 21,54 inches with B-lensholder) - Power requirements : single phase or triple phase 200-240V 16A
- Heat load : 4600 BTU/h @ max power @ 40°C
- Exhaust airflow : 300 CFM
- Media server : Fully Integrated Barco mFusion ICMP-XS with SSD Storage Up To 16TB eff. Other media server brands** supported.
- Power consumption : 1.35kW (3W in Eco mode)
- Noise Level : 50dB(A) @1m, max power and 25°C ambient temperature
- 3D systems : Active glasses systems and polarization systems on silver screens are supported. Color separation systems are not supported.
- Laser classification : Laser Class 1 – Risk Group 3
- User interface : Integrated Touch Display and/or Web-based Communicator Web Analyzer for service
Barco SP2K‑15S Laser Projector
Description
SP2K-15S is part of the Series 4 portfolio, designed in close collaboration with industry partners. Market trends in content creation, exhibition and technology were taken into account. The result? A market leading laser projection family for all cinema screens. The SP2K models come in many different configurations offering you the freedom of choice. A wide range of brightness options, compatibility with various media servers and lenses, as well as a touch display and live streaming option. Play with the available options to match your specific needs.
The SP2K models of the Series 4 family bring native 2K resolution, full P3 color space, higher contrast and enhanced uniformity into the movie theater. The Barco Active Image ManagementTM includes patented technology to guarantee sharp, consistent image quality over time.
General specifications and features
- Native brightness : 15,000 lumens (typical)
- Native contrast ratio : 2200:1 (typical)up to 3000:1 with HC lens
- Digital MicroMirror Device™ : 3x 0.69″ u2K
- Resolution : 2K: 2048 x 1080
- Color gamut : DCI P3 compliant
- Light source : Laser
- Prime lenses : 0.83-1.2, 1.2-1.7 , 1.34-1.9, 1.5-2.15 , 1.7-2.55 , 2.0-3.9 High-brightness and high-contrast lenses
- Long-term brightness stability : +50,000 hrs @ average usage conditions
- Housing : integrated cooling design and patented sealed optical assembly
- Dimensions (WxLxH) : Projector incl feet: 650 x 880 x 420 mm/ 25,59 x 34,65 x 16,54 inches
- Power requirements : single phase 200-240V 10A
- Heat load : 5306 BTU/h @ max power @ 40°C
- Exhaust airflow : 250 CFM
- Media server : Fully Integrated Barco mFusion ICMP-XS with SSD Storage Up To 8TB eff. Other media server brands** supported.
- Power consumption : 1,5kW (3W in Eco Mode)
- Noise Level : 52 dB(A) @1m, max power and 25°C ambient temperature
- 3D systems : Active glasses systems and polarization systems on silver screens are supported. Color separation systems are not supported.
- Laser classification : Laser Class 1 – Risk Group 3
- User interface : Integrated Touch Display and/or Web-based Communicator Web Analyzer for service

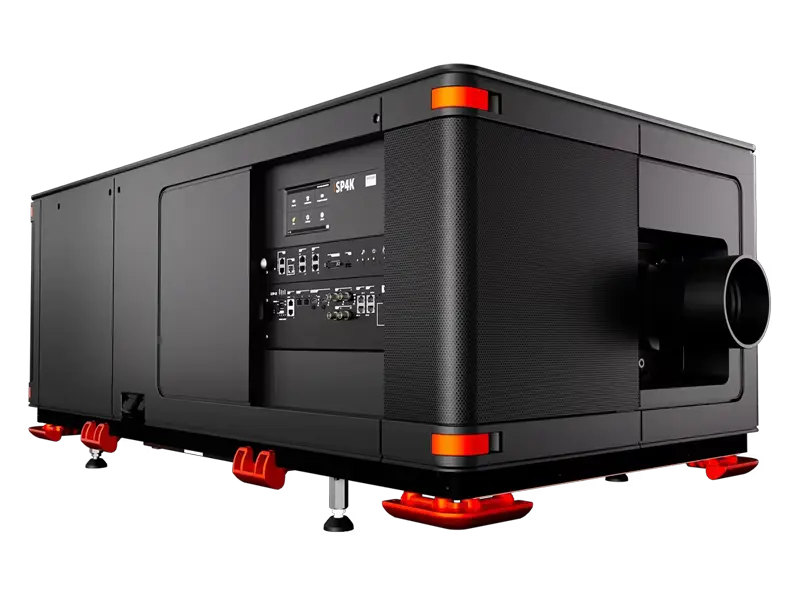

Barco SP4K‑35B Laser Projector
Description
SP4K-35B is part of the Series 4 portfolio, designed in close collaboration with industry partners. Market trends in content creation, exhibition and technology were taken into account. The result? A market leading 4K RGB projector family, designed for cinema. The SP4K models come in many different configurations offering you the freedom of choice. A range of lumens, compatibility with both Barco lenses and selected 3rd party lenses. Play with the available options to match your specific needs.
The Barco ColorgenicTM technology opens up the full P3 color space and more than 98.5% of Rec. 2020. SP4K-35B is fully enabled for future innovations like 4K HFR and IAB. Deliver stunning results not only on day 1, but consistently throughout the lifetime of the product.
General specifications and features
- Native brightness :36,000 lumens (typical)
- Native contrast ratio : 2000:1 (typical) up to 2800:1 with HC lens
- Digital MicroMirror Device™ : 3x 1.38″ DC4K
- Resolution : native 4K: 4096 x 2160
- Color gamut : DCI P3 (98.5% of Rec. 2020; when measured in xy-color coordinates)
- Light source : Laser
- Prime lenses : 1.13-172; 1.35-1.86; 1.46-2.10; 1.65-2.60; 2.00-3.35; 2.53-4.98 High-brightness and high-contrast B-lenses compatible
- Long-term brightness stability : +50,000 hrs @ average usage conditions
- Housing : integrated cooling design and patented sealed optical assembly
- Dimensions (WxLxH) : projector incl. feet760 x 1470 x 612 mm 29,92 x 57,54 x 24,09 inches
- Weight : 163kg/359lbs
- Power requirements : single phase or triple phase 200-240V 20A
- Heat load : 10,000 BTU/hr @ max power @ 40°C
- Exhaust airflow : 615CFM
- Media server : Fully Integrated Barco mFusion ICMP-XS with SSD Storage Up To 16TB eff. Other media server brands** supported.
Power consumption : 3.0kW (3W in Eco mode) - Noise Level : 51dB(A) @1m, max power and 25°C ambient temperature
- 3D systems : Active glasses systems and polarization systems on silver screens are supported. Color separation systems are not supported.
Laser classification : Laser Class 1 – Risk Group 3 - User interface : Integrated Touch Display and/or Web-based Communicator Web Analyzer for service
